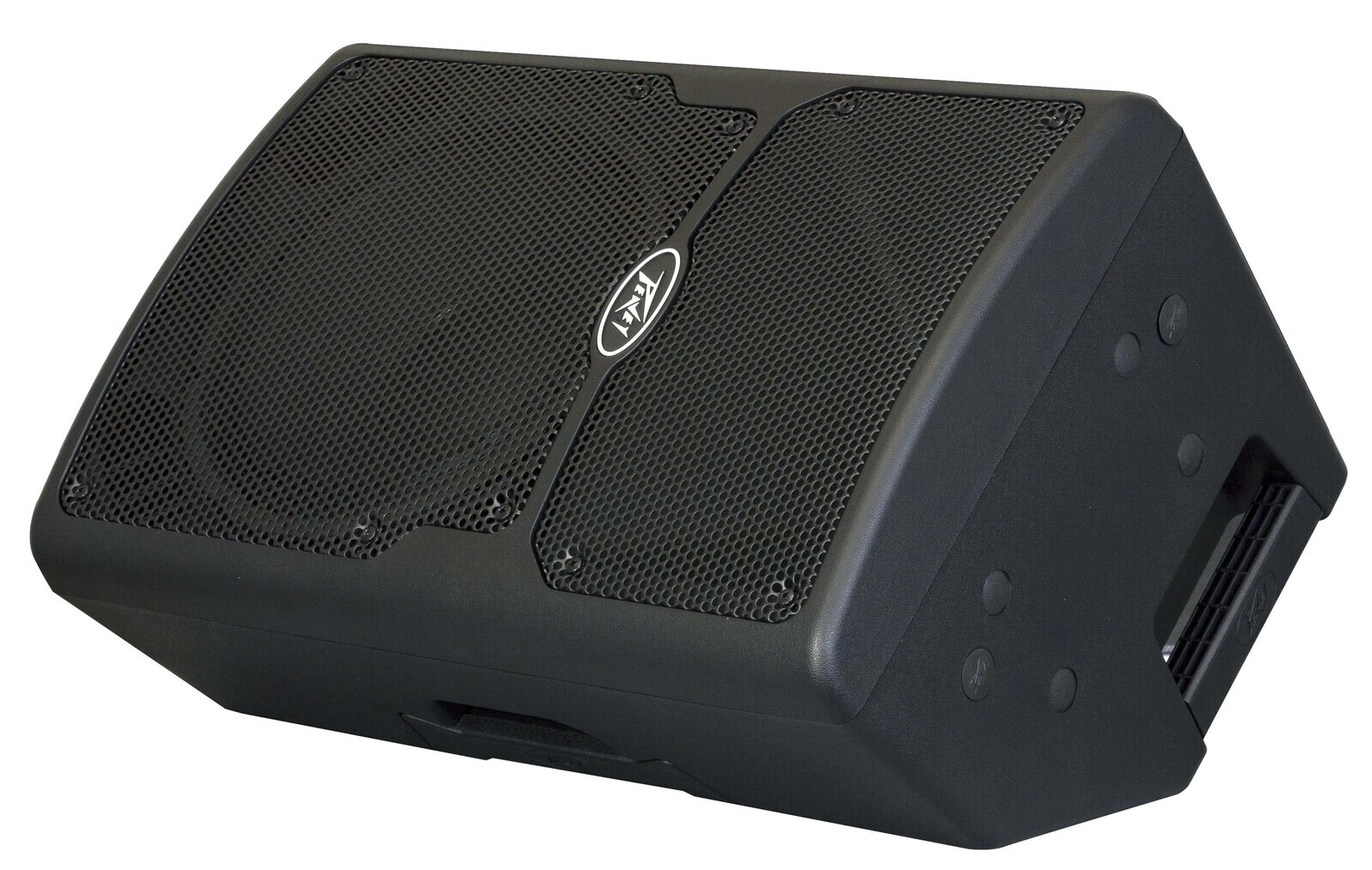

The PVXp™10 DSP features a reliable bi-amped power section that provides a total of 510 Watts of peak available dynamic power. With that much available power, speaker protection is critical.

Advanced digital signal compression prevents audible overload, protecting the speakers from harmful distortion at high output levels. This powered enclosure also includes heavy duty speaker drivers; it features a 10" woofer with a 2-3/8" voice coil and a 50 oz. magnet, this is coupled with the RX10N compression driver that includes a 1" diaphragm on a 100-degree horizontal x 60 degree vertical pattern asymmetrical horn.

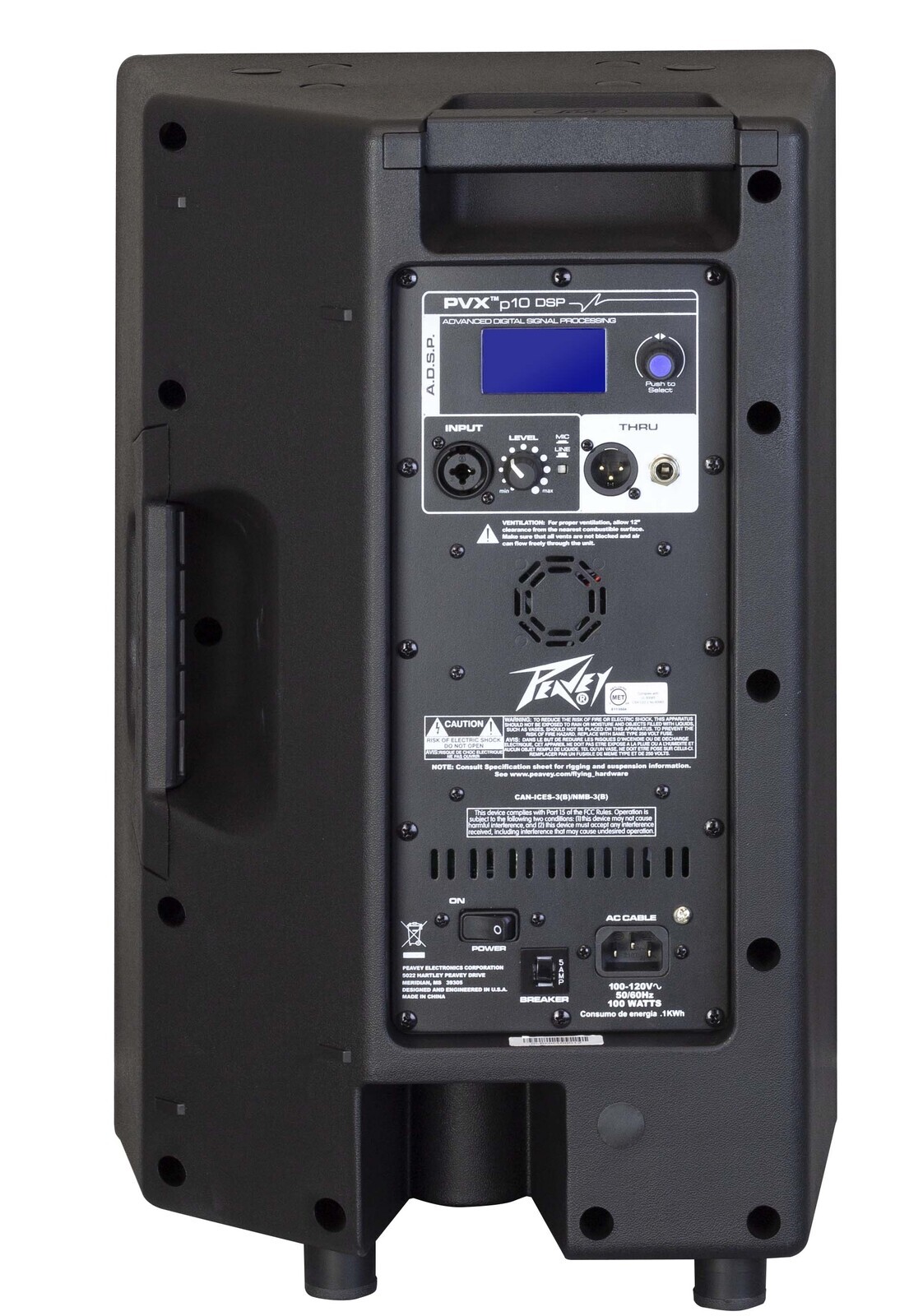

The PVXp™ 10 DSP provides a balanced input via a combination jack that accepts a balanced TRS 1/4" input, as well as a balanced XLR input and summed RCA jacks. There are two balanced Thru outputs, a male XLR and a 1/4" TRS. The LCD display and EQ presets, along with other operating parameters are accessed via a one-knob selector

Features:

Two-way bi-amplified powered speaker system

10" heavy-duty woofer with a 2-3/8" voice coil & 50 oz. magnet

RX™ 10N compression driver, with 1 inch diaphragm

380 watts peak dynamic woofer power, 130 watts peak dynamic tweeter power

DSP processing is 64 bit double-precision

DSP I/O is at 48 kHz and 24 bits, with low-jitter, professional grade components

Fan cooled for maximum reliability

Patented Quadratic Throat Waveguide™ technology, 100 by 60 degree coverage

Asymmetrical horn aims the sound down 10 degrees, at the audience, not over their heads.

Input is via a combo female XLR and 1/4" TRS phone jack with balanced input

A Mic/Line switch provides for two different gain settings

Thru output is via a male XLR jack and 1/4" TRS phone jack

Multiple Factory Preset EQ settings

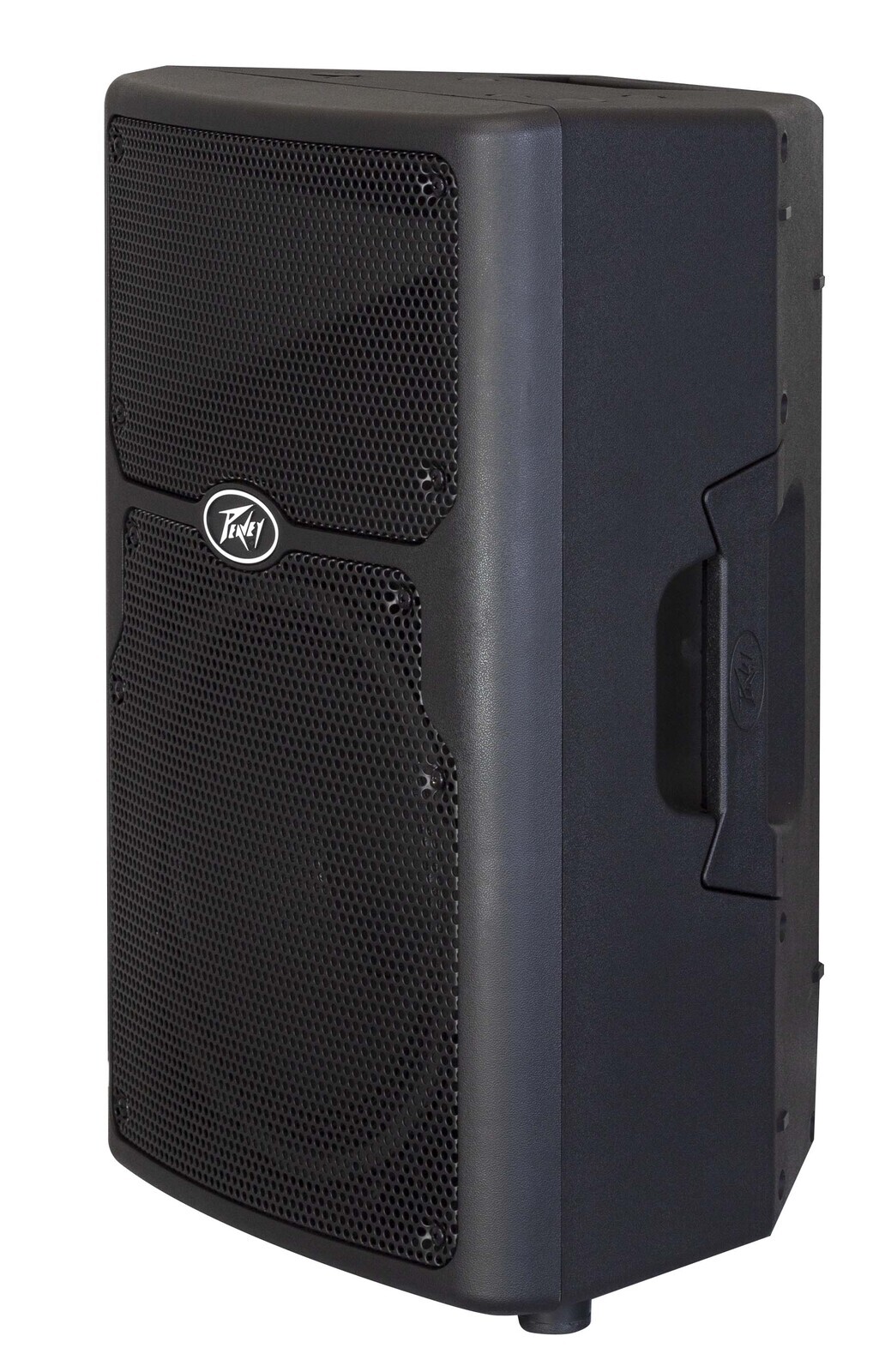

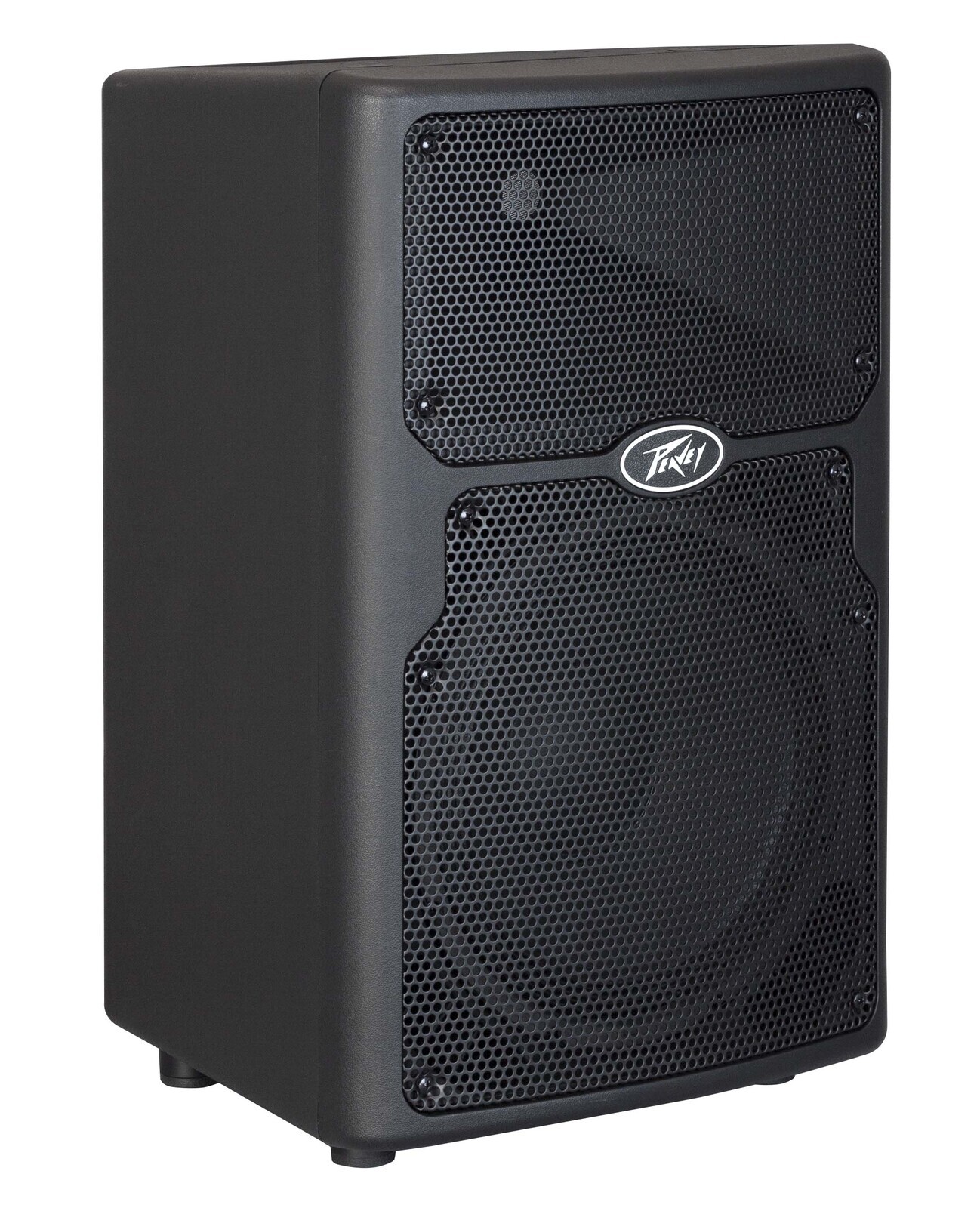

Rugged plastic injection-molded trapezoidal enclosure

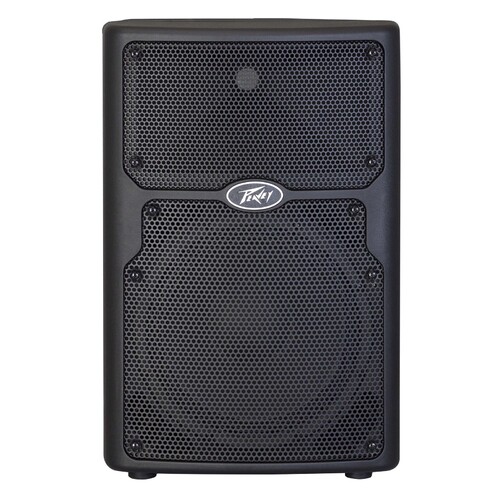

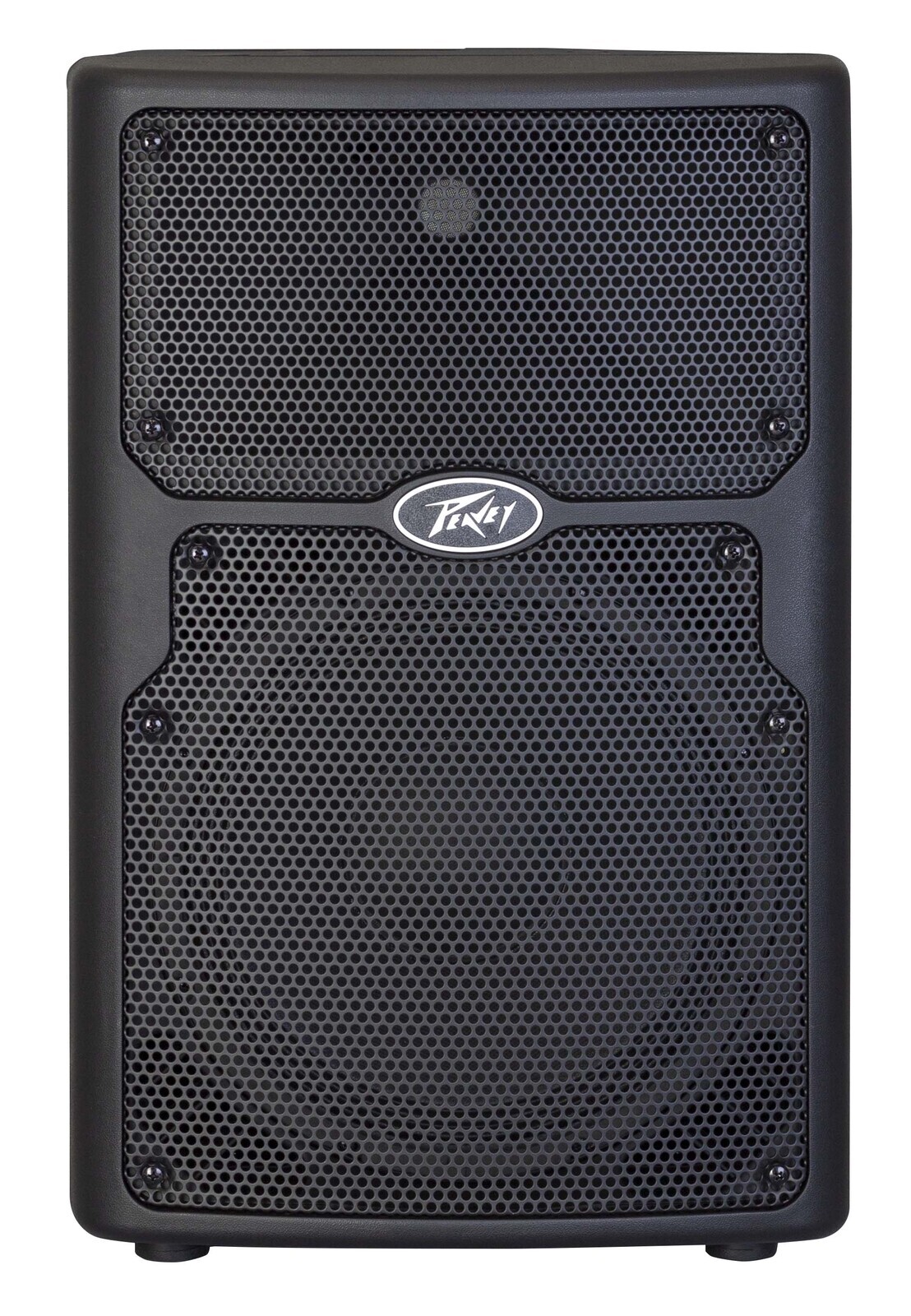

Full-coverage perforated steel grille, with powder coat finish

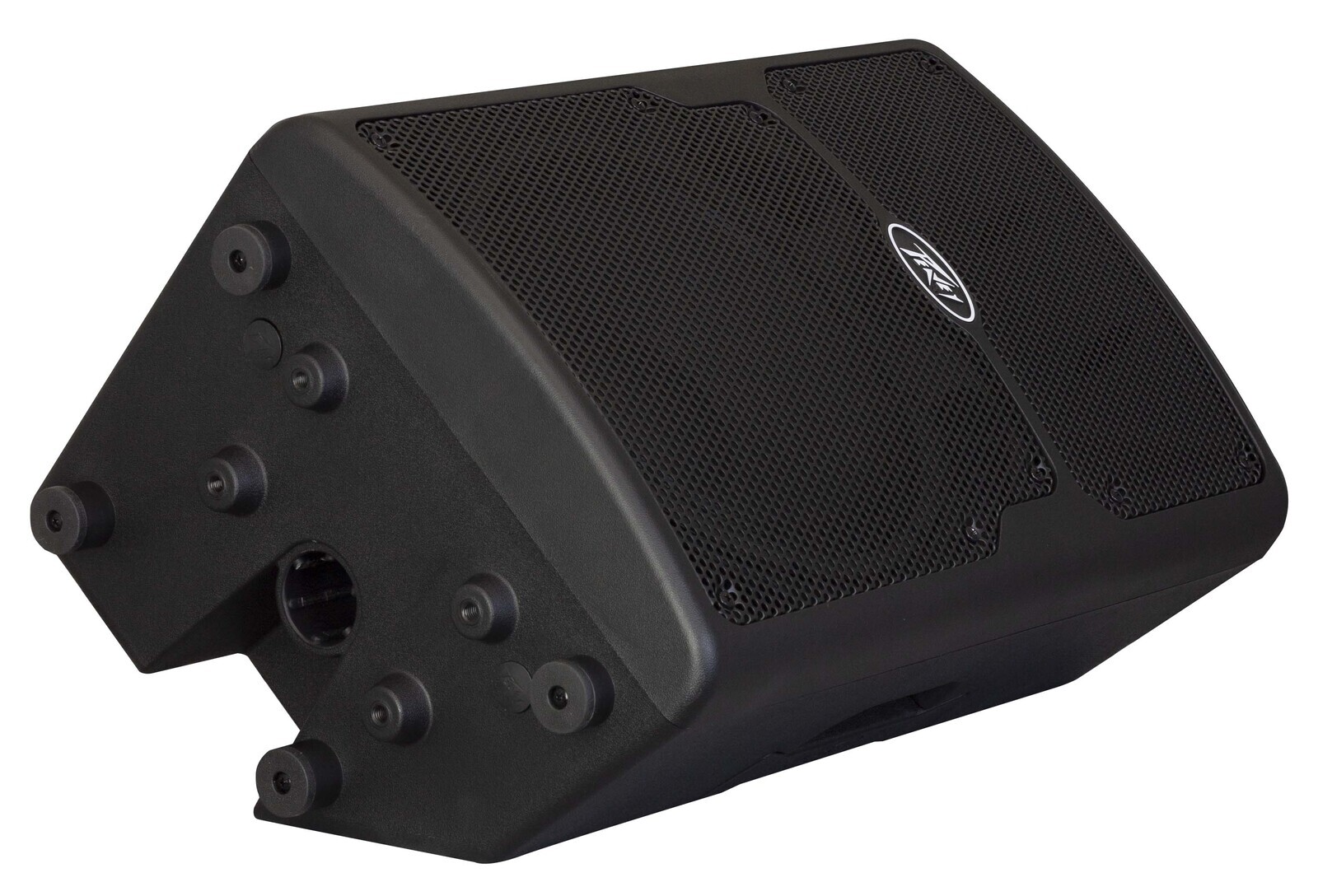

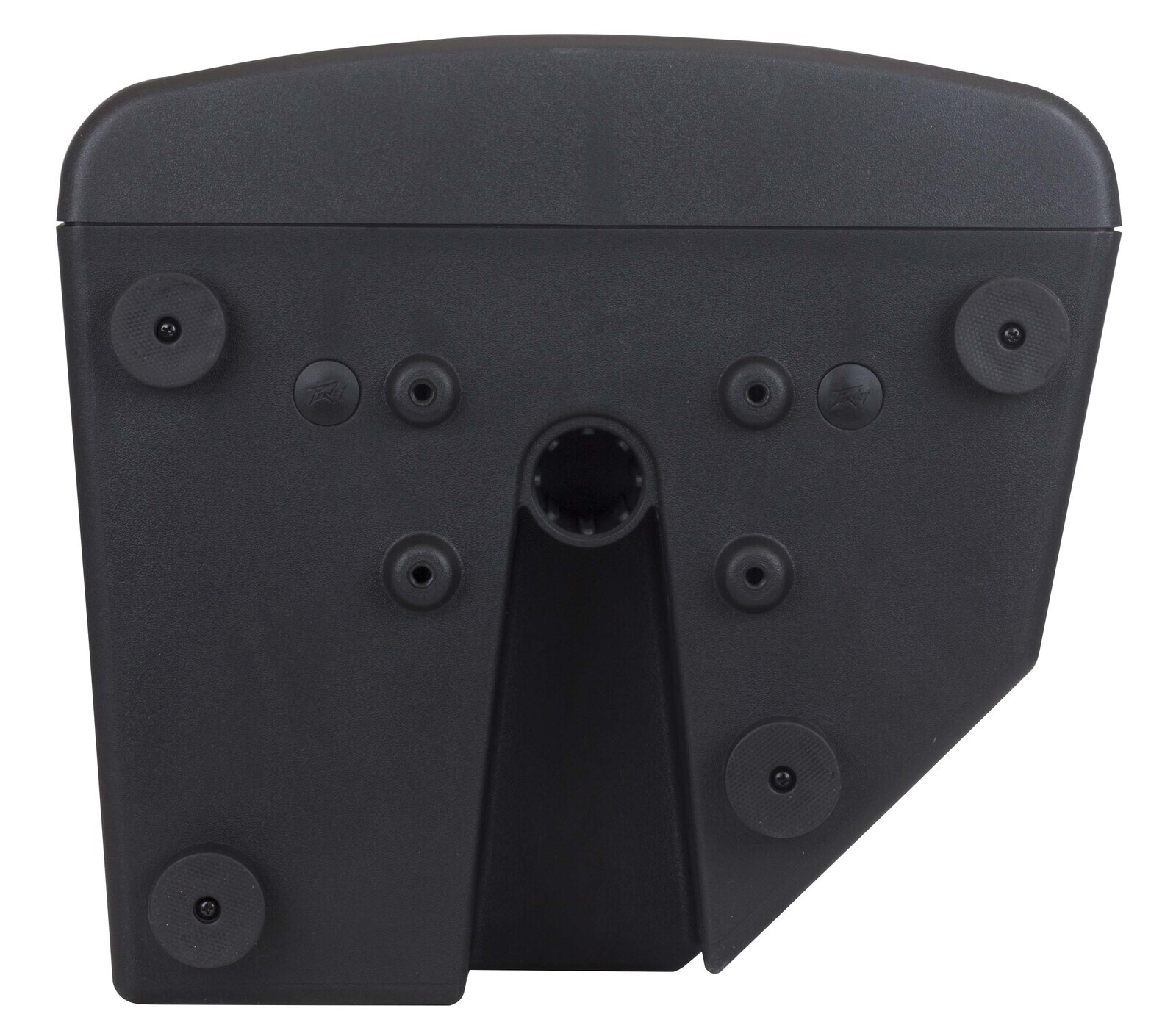

Pole mount molded-in for 1 3/8" diameter poles

Top and bottom flying point inserts

Weight Packed: 35.27 lb (16 kg)

Width Packed: 15.95" (40.50 cm)

Height Packed: 22.44" (57.01 cm)

Depth Packed: 14.37" (36.50 cm)
