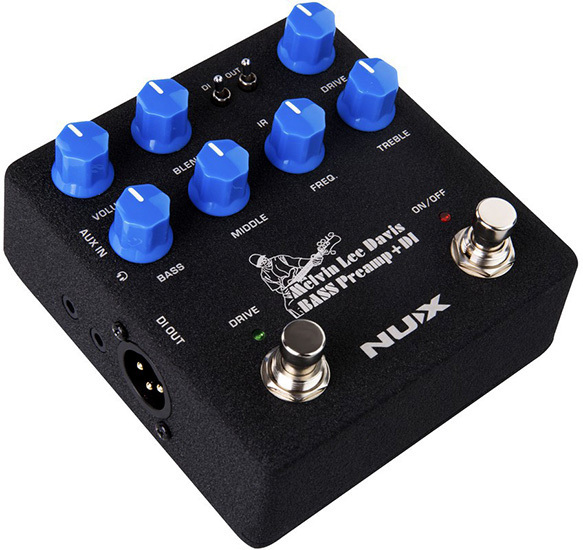

Designed by a Bassist for Bass Lovers. We collaborated with American bass player Melvin Lee Davis to create the NU-X MLD Bass Preamp & DI.

Melvin Lee Davis is an American bass player, vocalist, keyboard player, producer, TV composer and engineer based in Orange County, California. He is the music director for Grammy-award winning artist Chaka Khan and has recorded with The Pointer Sisters, Lee Ritenour, Bryan Ferry, Patti Austin and Gladys Knight & the Pips.

MLD Bass Preamp + DI has tons of functions based on Melvin Lee Davis' musical experience. And offers the best sound-shaping controls such as: 3-band EQ with middle-frequency selection, drive with blend control, speaker cabinet simulation (Impulse Response loader) and built-in noise reduction with Decay and Threshold controls.

Specifications:

24-bit, 48KHz

Impulse Response: 1024 length (20.33ms)

Latency: 1ms

3-band EQ with Middle-frequency selector

Drive with blend control

Built-in noise reduction

Impulse Response loader, speaker cabinet simulation

1/4" instrument input

1/4" through output and main output

XLR DI output

1/8" headphone output

1/8" Auxillary in for music player connection

Micro B USB input for firmware update, software control, IR loading, and audio stream

Features:

MLD signature Bass Preamp + DI features fully sweepable mid-range frequencies in addition to Bass and Treble controls. Melvin L. Davis is proficient at 4, 5, 6 and 7 string basses, so MLD Bass Preamp has a wide range of frequency control.

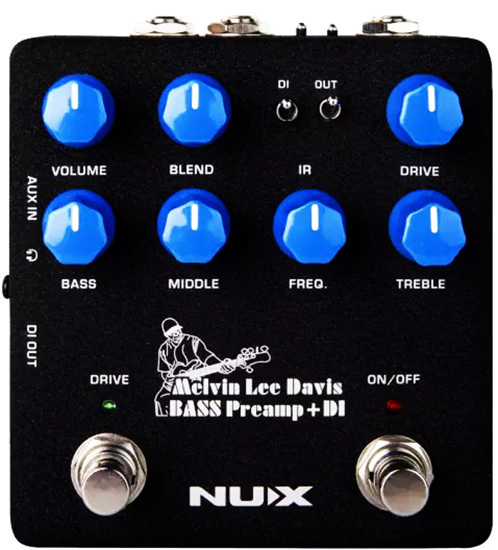

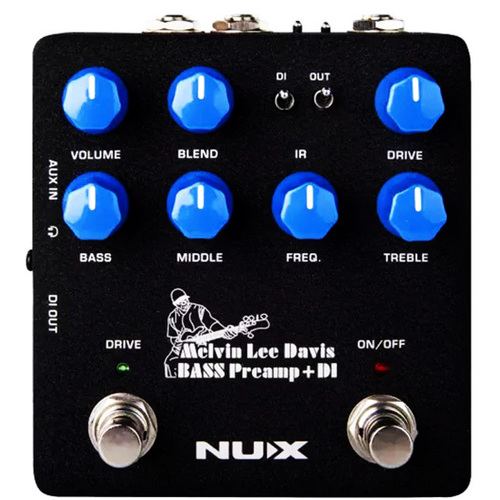

Volume Knob

Adjusts the overall output volume of the pedal. Ideal for fine-tuning the output on clean tone, it also controls the DI output volume.

Blend Knob

Adjusts to blend between the clean signal and overdrive signal. The clean signal remains as unity gain, allowing for fine control of the blend ration.

Drive Knob

Adjusts the Gain level and sets the saturation level in the overdriven signal.

3-Band Equalizer with Middle Frequency Selector

Bass: +/- 12dB @40Hz Middle: +/- 17dB @160Hz to 1000Hz Freq.: 160Hz ~ 1000Hz Treble: +/- 12dB @8000Hz

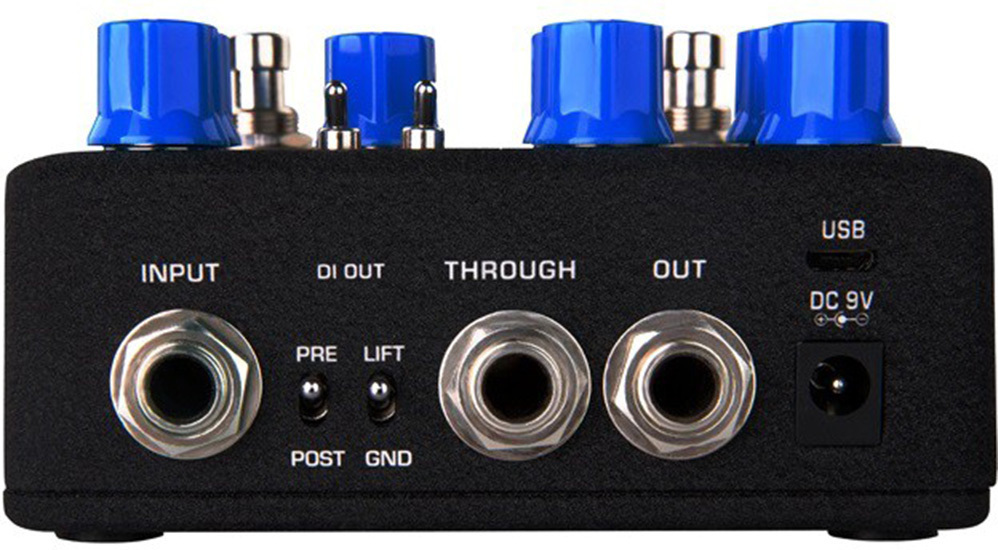

DI Output

Balanced XLR Output carrying the mic-level output signal, either affected or unaffected depending on the Pre-Post switch.

GND LFT (Ground / Lift) Toggle Switch

Disconnects the signal ground on the DI out to break any ground loops. Toggle the switch to the LESS noisy position; it can be either GND or LFT depending on the room, stage or studio condition. Switch does not effect the 1/4-inch (6.5mm) output.

Impulse Response (IR) Toggle Switches

You can activate/deactivate the IR cabinet simulation for both DI out and 1/4-inch (6.5mm) out separately. Use the appropriate IR toggle switch to turn ON/OFF the emulation for the output you choose.
