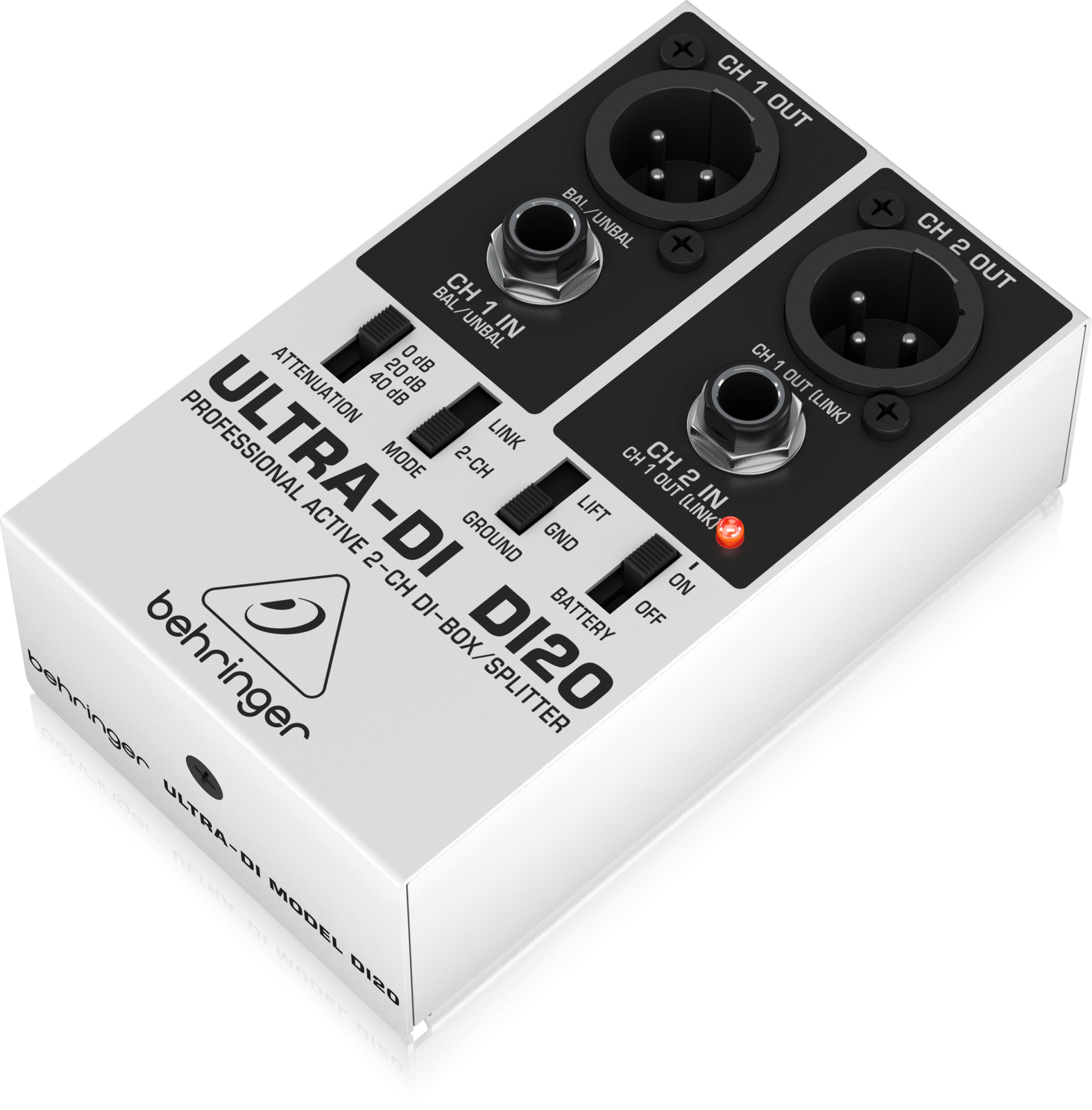

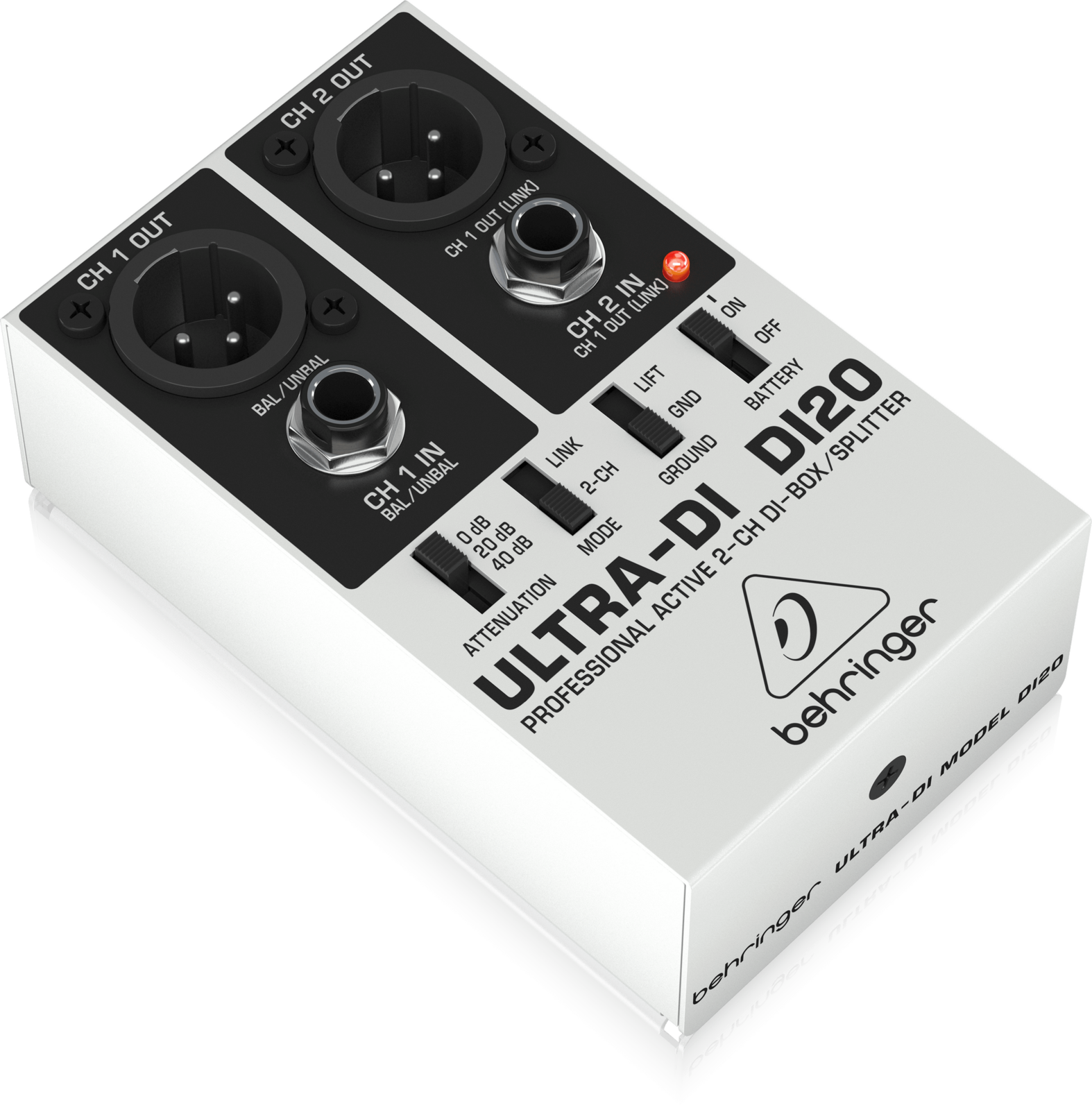

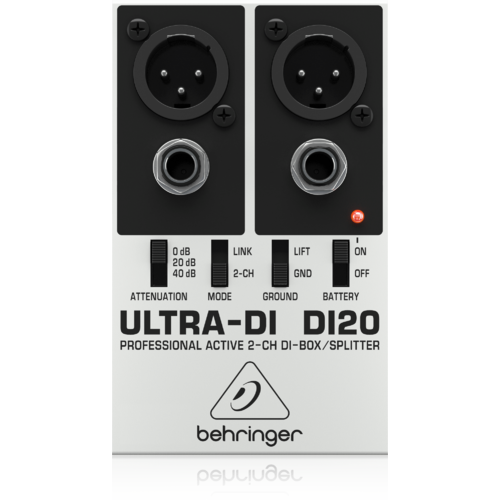

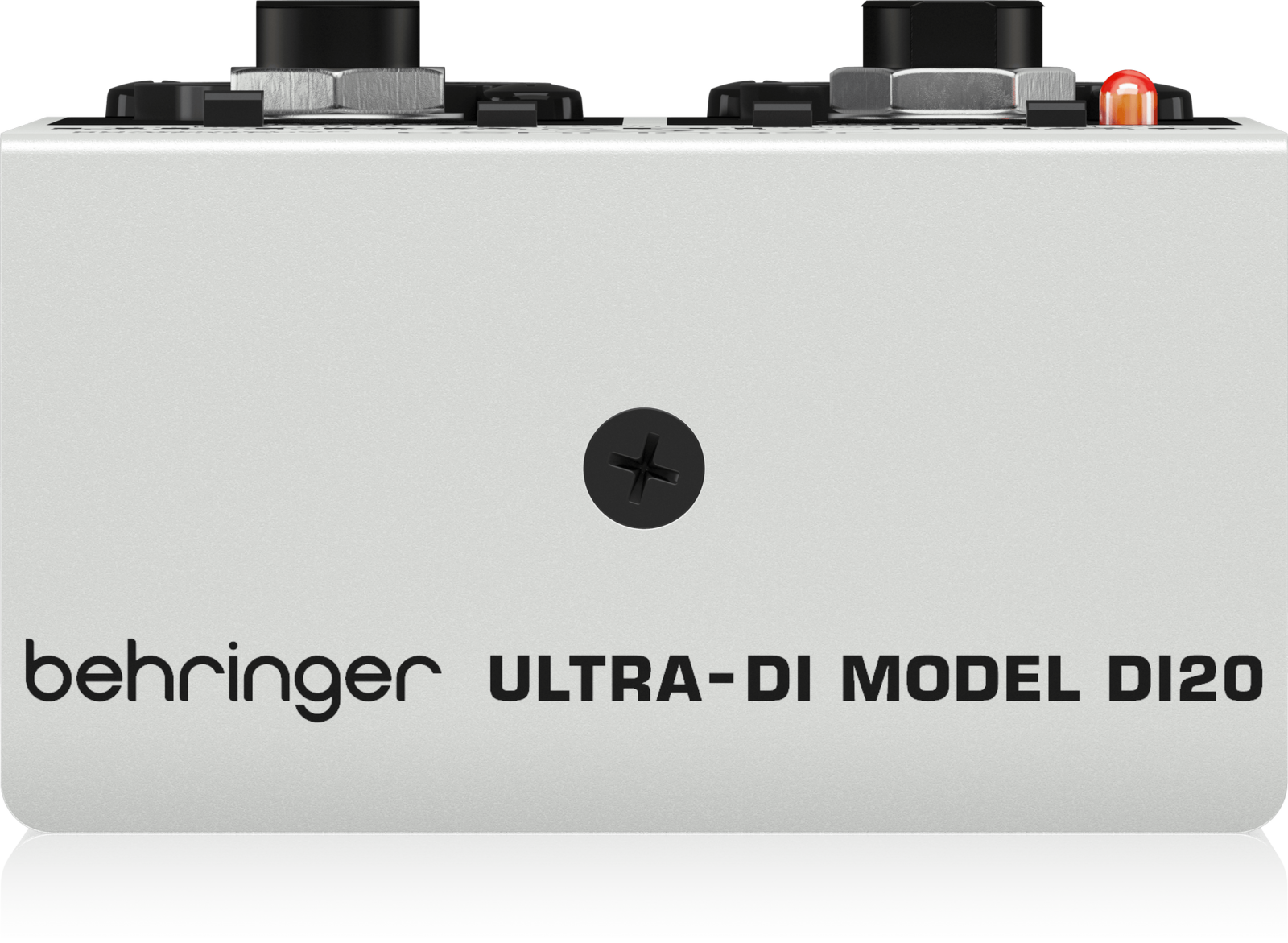

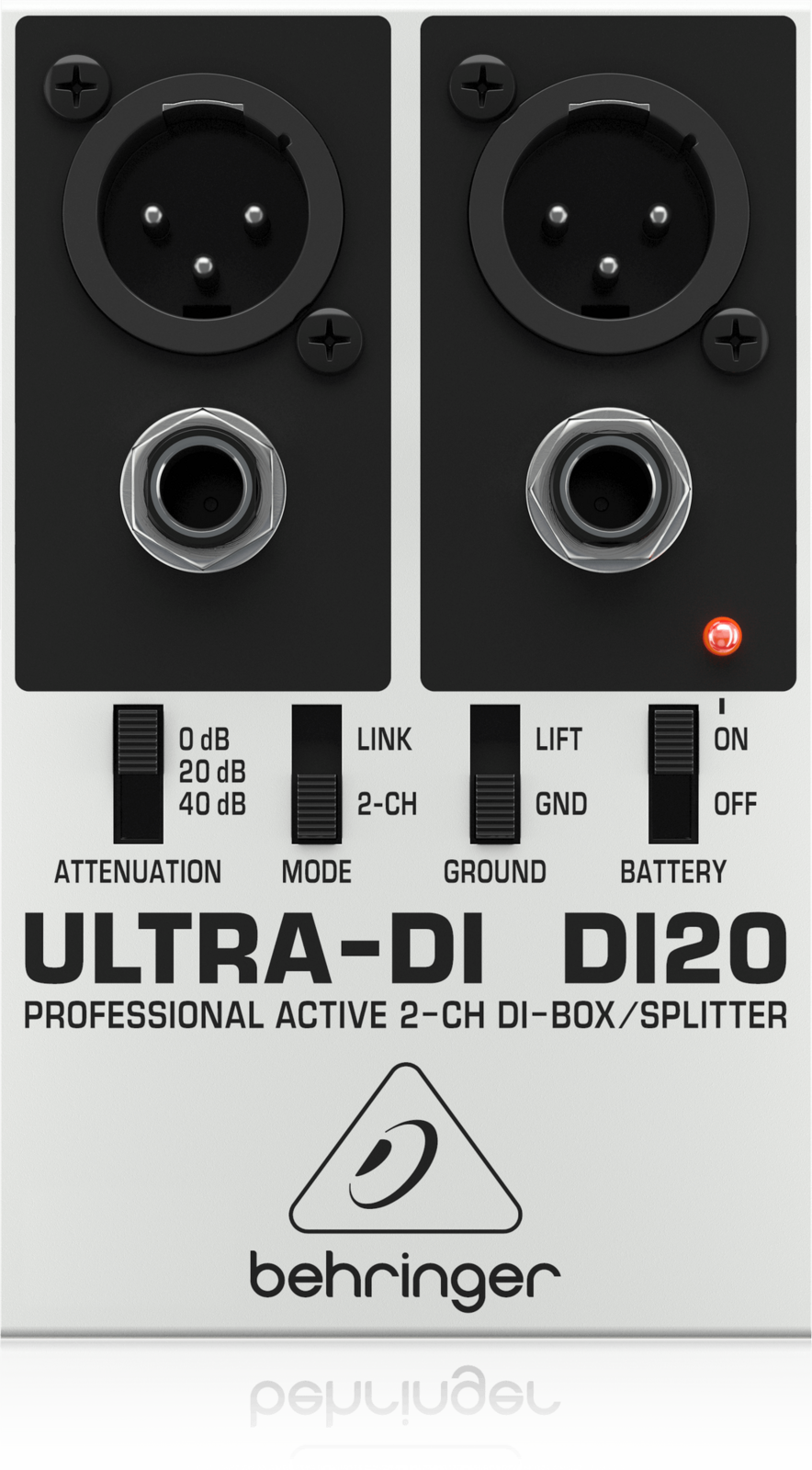

The ULTRA-DI DI20 is a one-of-a-kind DI (Direct Injection) box that can convert up to two separate, unbalanced ¼ " TRS lines into two balanced XLR outputs – or function as a signal splitter. Electric guitarists, keyboardists and bassists will love the flexibility the incredible DI20 provides both in the studio and on the stage.

By flipping a switch, you can use the DI20 as a launching pad for two separate mono signals, a stereo signal – or a split-signal feeding two separate amps. The DI20 also features a superb ground-lift switch, and the 3-position input attenuator can accommodate input levels of up to +48 dBu. This handy built-in attenuator also allows you to connect directly to your amplifier’s speaker outputs, even amps rated as high as 3,000 Watts.

You can power the DI20 with either a 9 V battery or your mixer’s phantom power supply (+18 to +48 V DC). The whole package is wrapped in an ultra compact, road-suitable and rugged metal housing.

Features:

Professional and multi-purpose direct injection box for stage and studio applications

Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers

Converts 2 independent unbalanced 1/4'' TRS line inputs into 2 balanced XLR outputs

Additional Split mode (channel 1 assigns signal to both XLR outputs)

Ultra-flat frequency response due to servo-balanced operation

Internal battery automatically shuts off when phantom power is applied

Allows direct connection to speaker outputs with up to 3,000 Watts

Ground Lift switch eliminates typical ground loop problems

Input 2 usable as channel 1 Link output (additional to XLR output)

¼“ TRS and gold-plated XLR connectors

Ultra-rugged, road-suitable metal case

Designed and engineered in Germany
